Product Introduction

U-shaped steel sheet pile, as a new building material, is used as soil retaining, water retaining and sand retaining wall in the construction of bridge cofferdam, large-scale pipeline laying and temporary ditch excavation. It plays an important role in the engineering of the wharf and unloading yard as the protection wall, retaining wall and embankment protection. Larsen steel sheet pile as cofferdam is not only green, environmental protection and construction speed, low construction cost, has a good waterproof function.

Produce	Steel sheet piles
Type	Steel sheet pile U/Z/W
Technique	Hot-rolled
Length	6/9/12m or as requested by the customer
Standard	EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M
Waterproof	By putty or welding
Temporary applications	Cofferdam, retaining walls, car parking, partitions, land reclamation, docking station and jetty

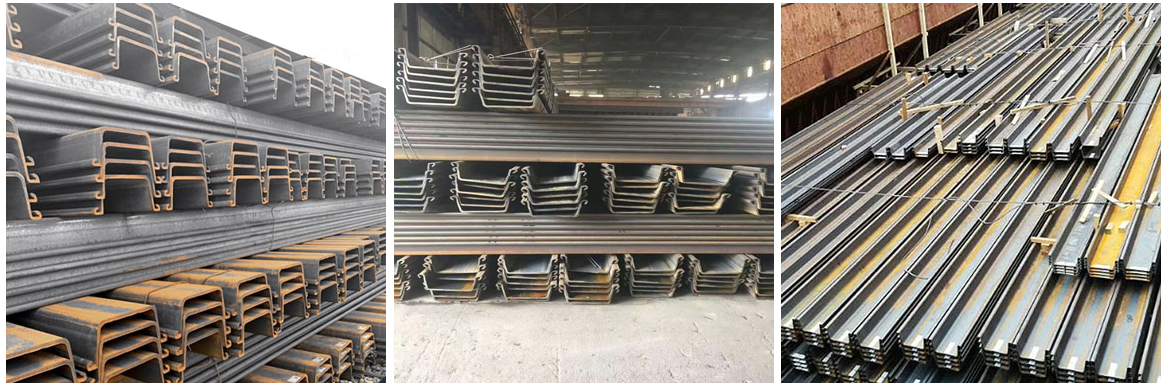

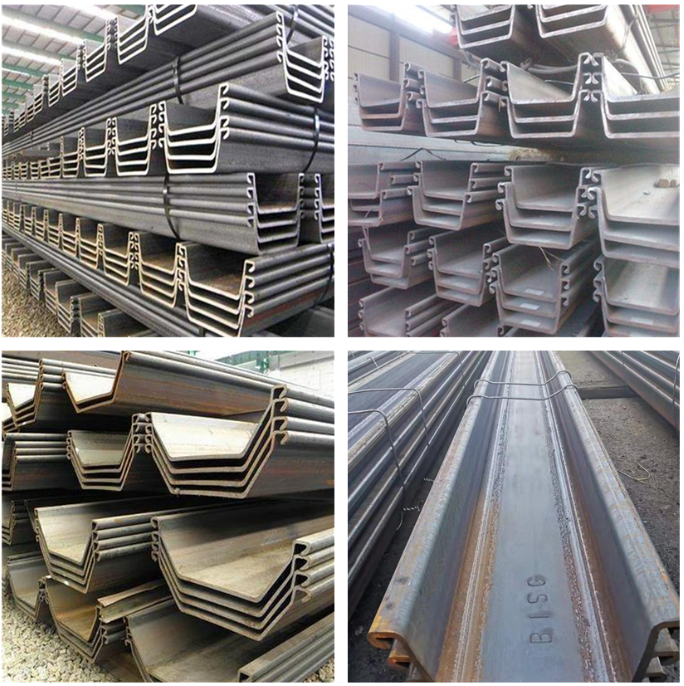

Product Display

Product Description

	Section size, section area, theoretical weight and section characteristics of U-shaped steel sheet pile
Model（WxH mm)	Effective width W1	Effective height H1	Web thickness T mm	Area of section	theoretical weight kg/m	Moment of inertia Ix	section modulus Wx	Area of section
400 X85	400	85	8	45.21	35.5	598	88	113
400X100	400	100	10.5	61.18	48	1240	152	153
400X125	400	125	13	76.42	60	2220	223	191
400X150	400	150	13.1	74.4	58.4	2790	250	186
400X160	400	160	16	96.9	76.1	4110	334	242
400X170	400	170	15.5	96.99	76.1	4670	362	242.5
500X200	500	200	24.3	133.8	105	7960	520	267.6
500X225	500	225	27.6	153	120.1	11400	680	306
600X130	600	130	10.3	78.7	61.8	2110	203	131.2
600X180	600	180	13.4	103.9	81.6	5220	376	173.2
600X210	600	210	18	135.3	106.2	8630	539	225.5
750X205	750	204	10	99.2	77.9	6590	456	132
	750	205.5	11.5	109.9	86.3	7110	481	147
	750	206	12	113.4	89	7270	488	151
750X220	750	220.5	10.5	112.7	88.5	8760	554	150
	750	222	12	123.4	96.9	9380	579	165
	750	222.5	12.5	127	99.7	9580	588	169
750X225	750	223.5	13	130.1	102.1	9830	579	173
	750	225	14.5	140.6	110.4	10390	601	188
	750	225.5	15	144.2	113.2	10580	608	192

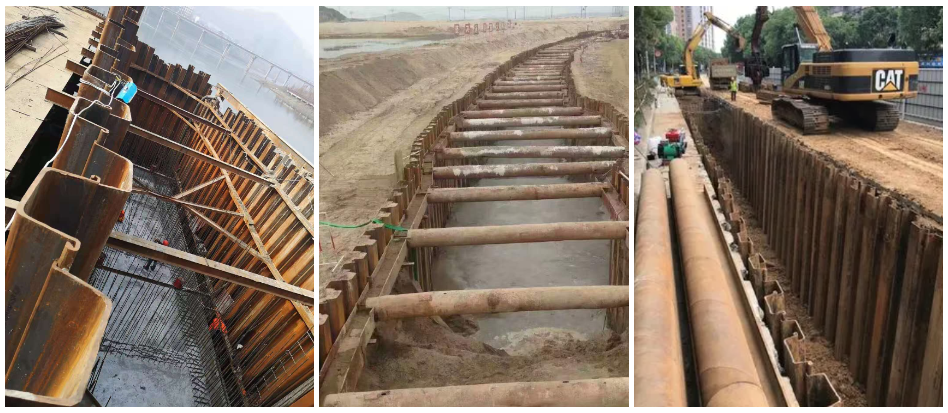

Application:

1.Dock wall,maintenance wall and retaining wall;

2.Construction of shipyards and shipyards,noise isolation wall;

3.Pier pile,(wharf)mooring column,bridge foundation;

4.Sunken railway,underground water retention;

5.The tunnel.
